Magnetrix: Interactive Display Leveraging Digital Papers and Wireless Control

Humphrey Yang, NCKU Power Electronics Lab, San Yu, Cheng Luen Hsueh

Role: Installation Design, Hardware Design, Interaction Design, Fabrication, Assembly

This machine was developed for demonstration on the C-Hub Demo Day 2016 (Nov. 23 2016) as a capstone for the joint research effort with E ink. The Magnetrix demonstrates both the induction control system and a vision to create interactive architectures.

View fullsize

Design Overview

View/ E Ink

View/Penetration

Transparency

Leveraging its pliability, we wrap E ink films into cylinders to create “polarized“ display pixels. When installed on a wall, users can only see the digital papers at a sharp viewing angle, and the installation is visually transparent when viewed perpendicularly.

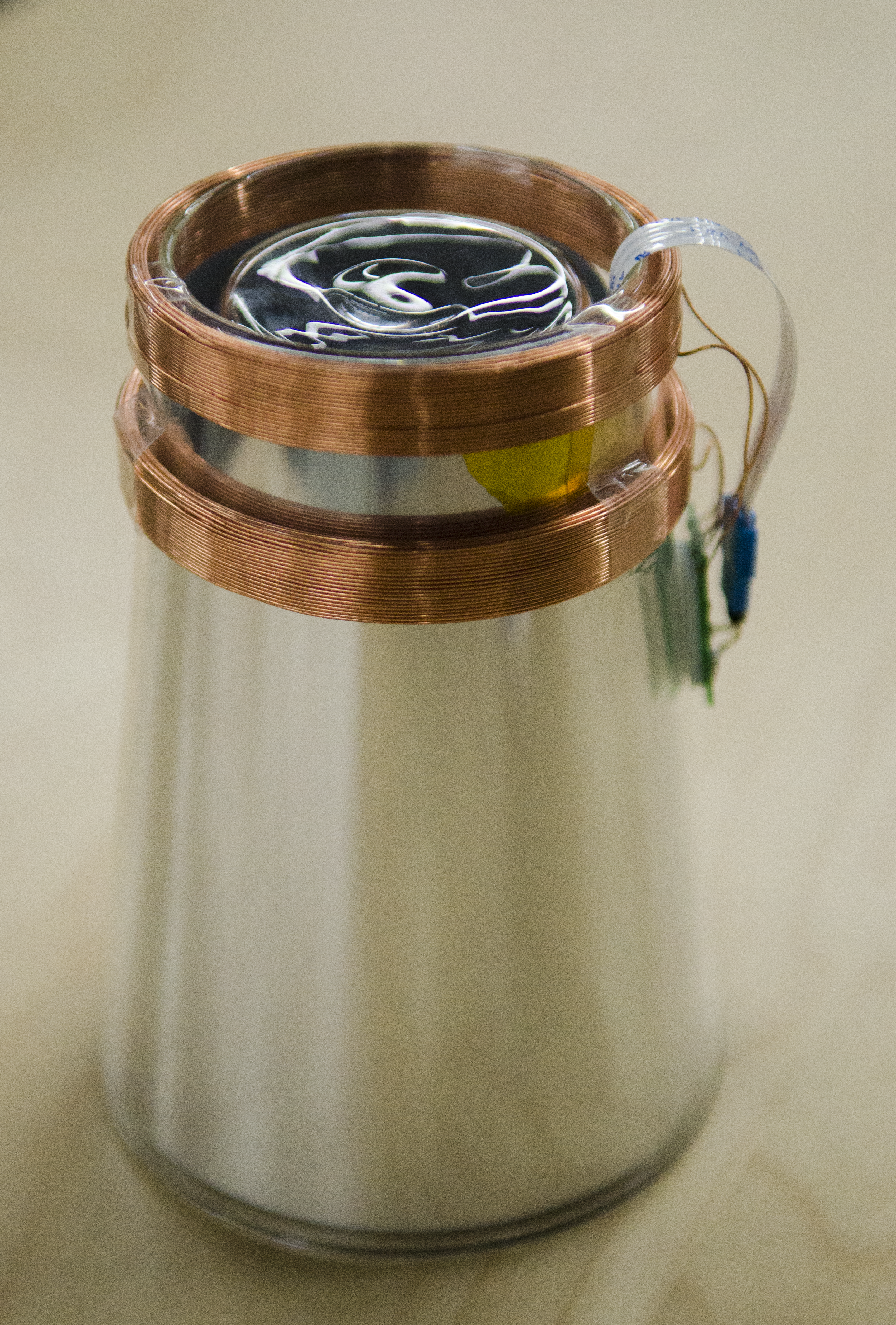

Display Pixels

By using two set of coils, each reacting to a distinct frequency, circuit induction circuit can produce inverting potentials on demand and consequently changing the paper color between black and white.

View fullsize

Radius-Small

Opacity-Low

Radius-Large

Opacity-Low

Radius-Small

Opacity-High

Radius-Large

Opacity-High

With our analogous control and power system, we produce a brush-like effect by modulating the current intensity and frequency of the affector coil.

Computer Controlled

The computer loops a predefined set of files to change the displayed pattern.

Computer Aided Interaction

The controller reads the user gesture with a Kinect and translate the motions into cursor movements.

Direct Interaction

A handheld device was developed for users to directly interact with the installation.

We designed three modes of interaction for users to interact with our device.

Uploaded by Humphrey Yang on 2016-12-09.

View fullsize

Acknowledgments

E ink for supporting the materials and production

NCKU C-Hub
